Walkthrough

The aim of the four Key-Value pair scripts is to provide a way to edit Key-Value pairs (MapAnnotations) and Tags (TagAnnotations) by batch:

• Import Key-Value pairs and Tags as Annotations from a .csv file

• Export Key-Value pairs to a .csv file

• Delete Key-Value pairs

• Convert the namespaces of Key-Value pairs

Following this walkthrough, we hope to give you an understanding of the four scripts that will help you to manipulate your annotations.

Object selection with the scripts

The object selection logic is the same for all four scripts. In OMERO there are two distinct hierarchies:

• Projects → Datasets → Images

• Screens → Plates → (Wells or Acquisition/Run) → Images

More details about selecting High-Content-Screening are given in another section (see Selecting High-Content-Screening).

To select which objects to manipulate by batch, the scripts offer three distinct ways.

Direct selection

The first is to simply select the all the desired objects. Opening the script after selecting the object will prefill the script parameters with the right object type and IDs:

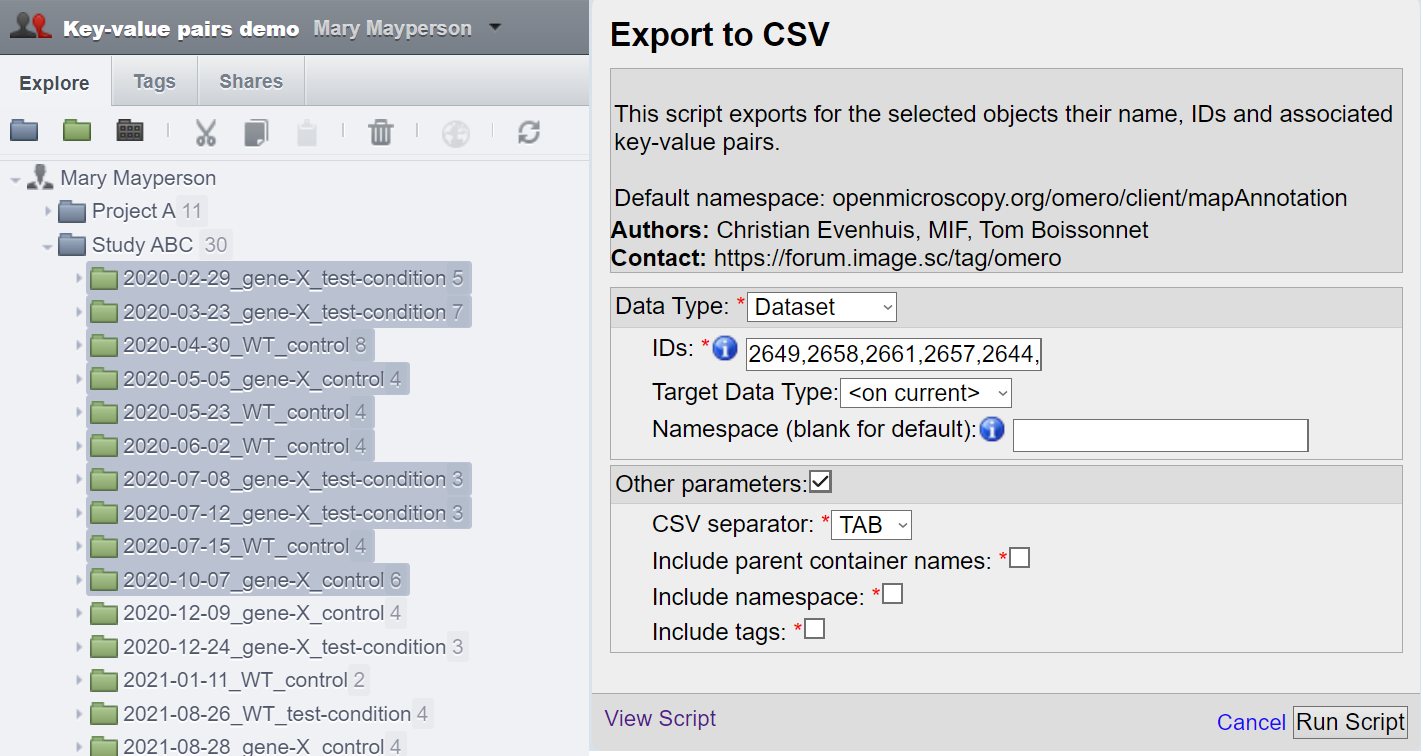

Selection of multiple datasets and the auto-filled Export to CSV script.

For the direct selection, leave the Target Data Type as “<on current>” (in this example, choosing Dataset would also work).

Children selection

Instead of selecting the objects one by one, we can select the parent object and set the “Target Data Type” to the type of the children objects we want to select.

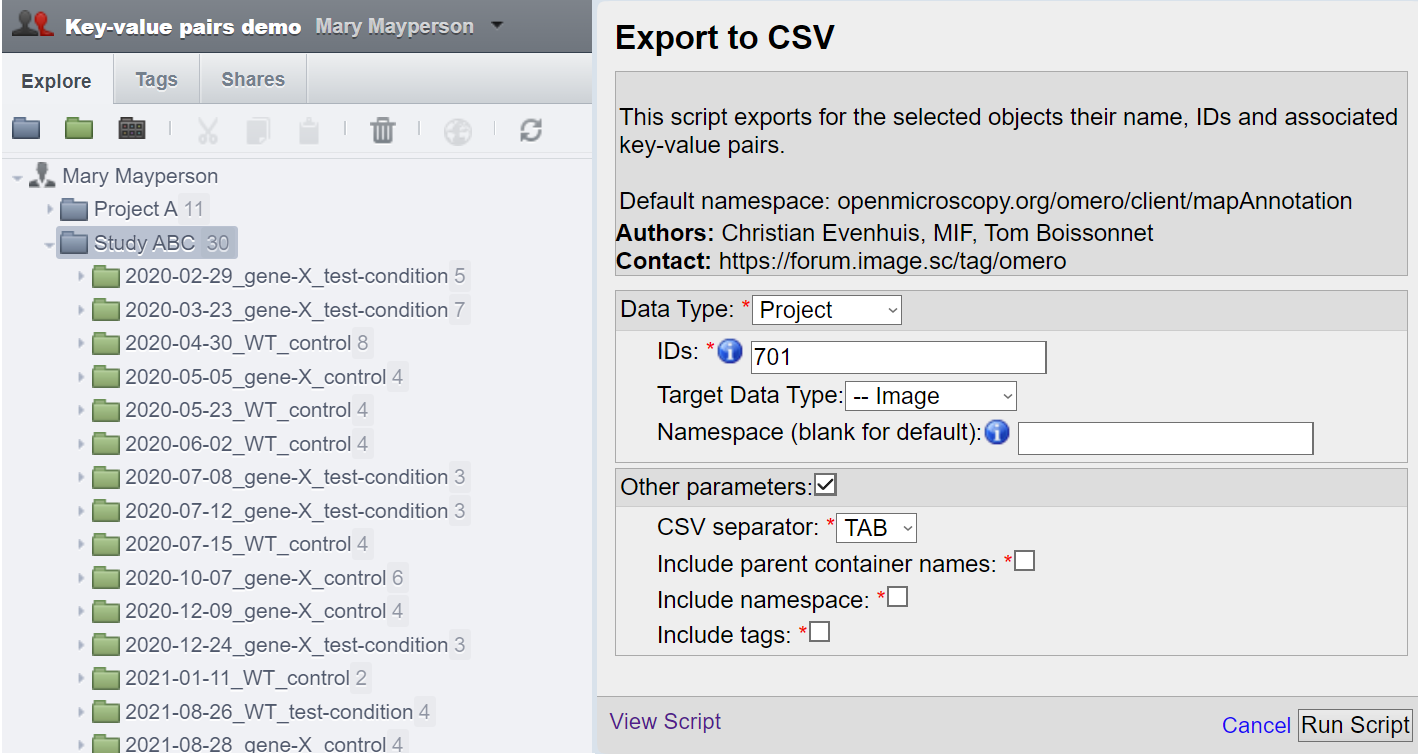

Selection of all the images of a project and the auto-filled Export to CSV script.

In this example, we would select all the Images found under the Project:701.

Tag selection

The third option is to select from a tag all the objects of a given type. This grants additional flexibility, either to select objects attached to different projects or different owners, or to have a finer control over which objects to process.

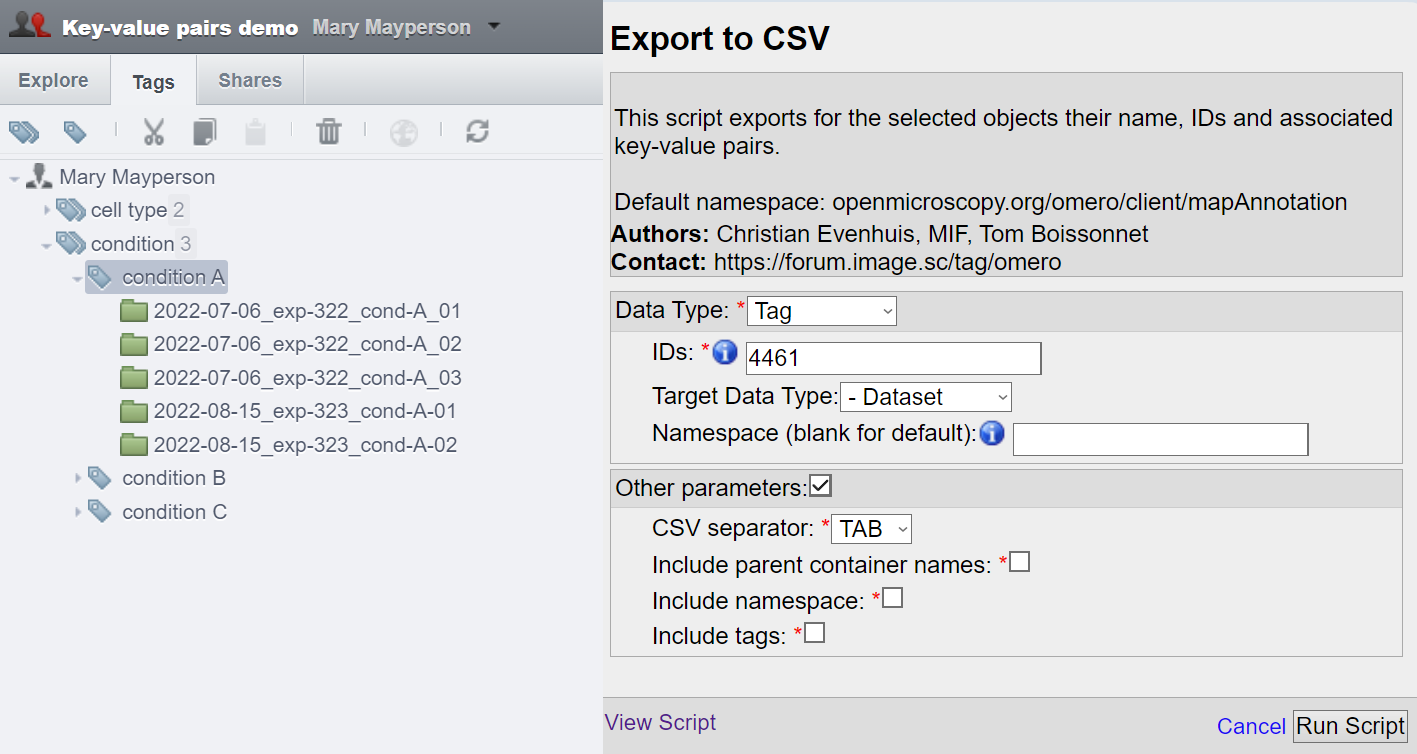

Selection of a subset of datasets from a tag and the auto-filled Export to CSV script.

The selection works in the same way as for the children selection. Note that choosing “<on current>” for “Target Data Type” will result in an error in this case.

Exporting Key-Value pairs

Exporting Key-Value pairs will generate a .csv file with the header names expected by the import .csv script. This has two use:

• export existing key-value pairs (along other things like namespace or tags). This can be useful to modify them before re-import, or to transfer annotations across groups.

• export a list of objects with their name and ID.

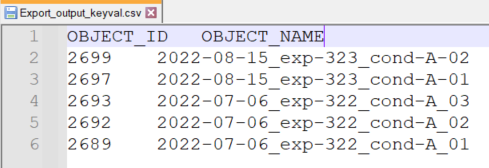

Exported .csv with only the object ID and name

Tip: If you have Key-Value pairs attached to your objects that you do not wish to export (to create a template like shown above), specify a not-in-use namespace (any random input will work).

Importing Key-Value pairs

Starting from the file we exported as explained in the previous section, we proceed to edit it within a spreadsheet editor, adding more columns to the csv, including a row specifying the namespace to assign for each key:

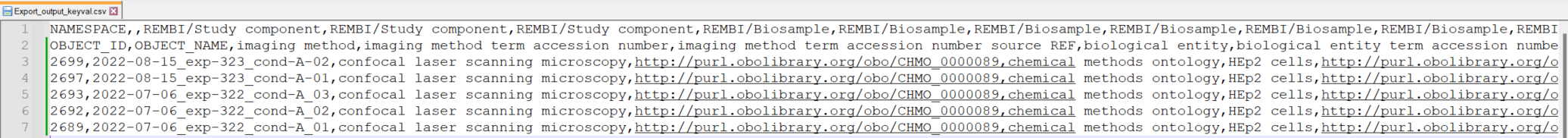

Result of populating the csv shown in a text editor

We added several columns to annotate our dataset with Key-Value pairs following the REMBI guidelines (after saving the document, our TAB separator became ,).

We proceed and start the script “Import Key-Value from .csv”.

Selection of all the datasets of a project and the Import from CSV script.

There are many parameters here that could help you fine tune the way to import annotations. More

on that in the parameter description section of this guide.

We can then see in the OMERO activities that the Key-Value pairs were added to 5 datasets out of the 11 present in this project (as expected). We also see three set of key-value pairs, one for each namespace we used in the csv.

The script output (5 entries in the csv matched to 5 dataset out of 11) and theresulting key-value pairs annotation.

Converting the Key-Value pairs namespace

Key-Value pairs are assigned a category/label (known as namespace). This grants flexibility so that different annotations can be distinguished or isolated (like for exporting/deleting only those with a given namespace).

In fact, if you created Key-Value pairs in OMERO.web, you have used namespaces without noticing it: OMERO assigns by default the “client namespace” (openmicroscopy.org/omero/client/mapAnnotation in full), a special namespace recognized by OMERO.web allowing to edit them.

We would like to do a few changes in OMERO.web, and for that we would need to change the namespace to the default OMERO.web namespace. We indicate the namespace we want to edit and leave the second field empty (default namespace is then used).

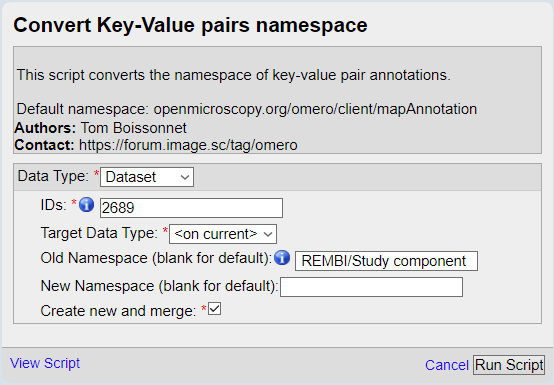

The script to convert the namespace of key-value pairs annotations.

And here is our five Key-Value pairs annotations with converted namespace:

The script output (5 dataset had annotations with the default namespace) and theresulting key-value pairs annotation.

Deleting Key-Value pairs

It turns out that there are more than a few edits to do on our key-value pairs, and converting back and forth the namespace seems too tedious this time. Let’s instead export what we have so far (we have done edits that we don’t want to lose), delete “old” the key-value pairs, and reimport when we are done fixing them.

Using the same selection inputs for both scripts, we make sure that we have the key-value pairs on our computer before deleting them. Because we want to export/delete multiple namespace at once, we can use the * to include all namespace.

Because there is no undo with the deletion of data from OMERO, think twice while checking the confirmation box and clicking the “Run script” button.

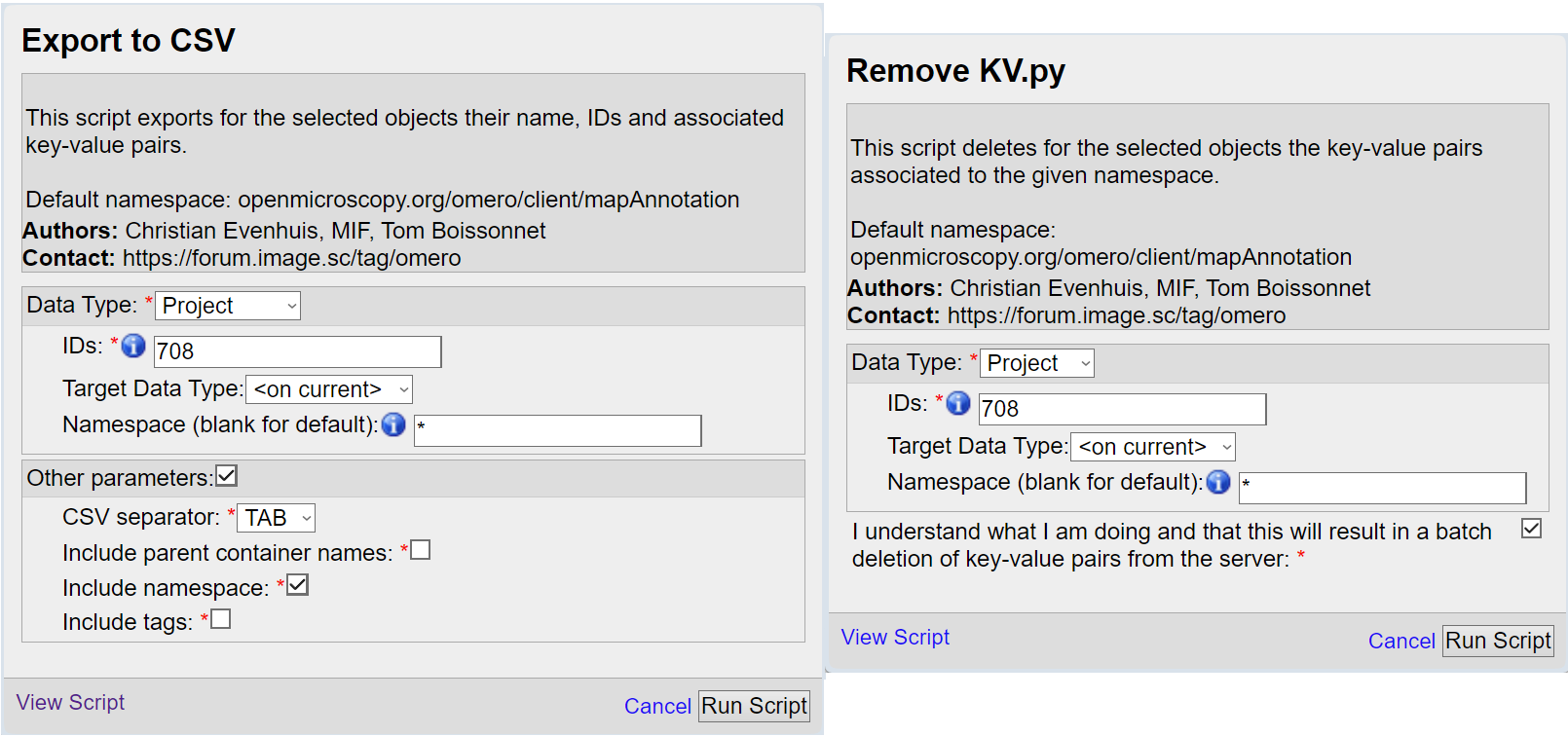

The two scripts used one after another. Export the annotations for backup before removing them from the server with the Remove KV script.

We can now edit the mistakes in the .csv file and reupload the Key-Value pairs!.

Make sure to check the extended guide to learn about what else you can do with those scripts.

Authors:

Tom Boissonnet

Version:

1.0 of 2024/03/01
